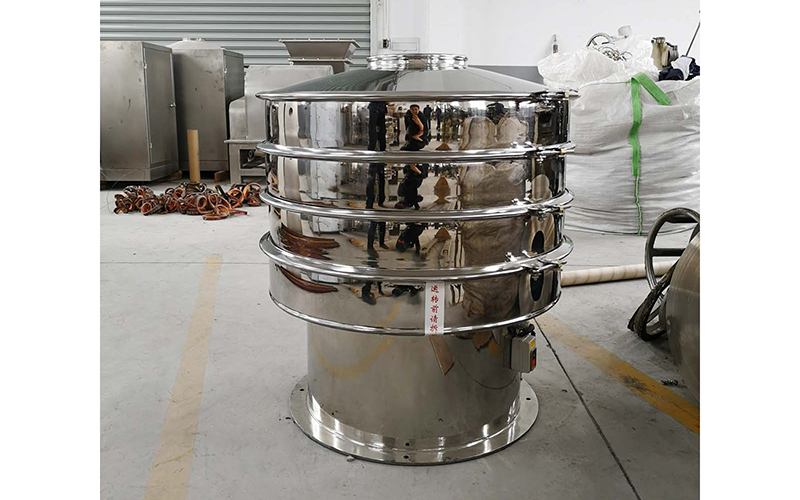

ZS Series High Efficient Screening Machine

The machine is a self creation under the guidance of foreign experience to overcome insufficient capacity and problems in sieving adhesive materials. The contact area between materials and sieve frame are made with stainless steel. It adapts to sieving in Pharmaceutics, foodstuff and chemicals.

Product introduction
Principles
Technical parameters

Product Introduction

Principles

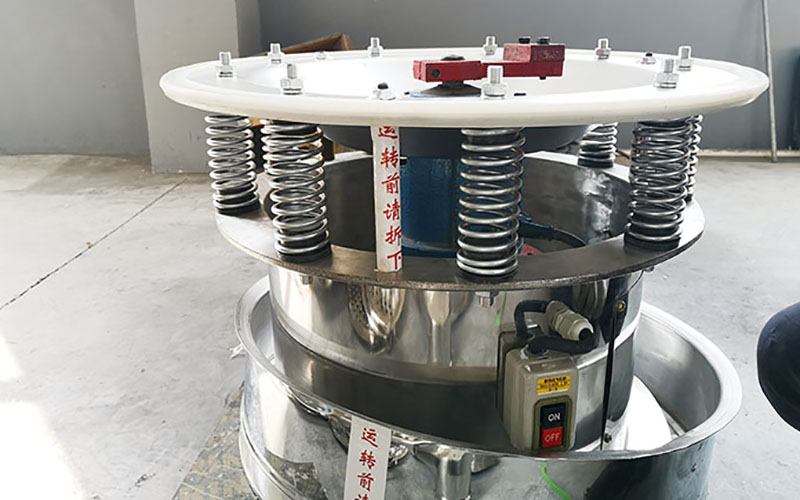

It is a vibrating system composed wholly by the vertical vibrating motor unit. There are eccentric excitation blocks up and down on the two ends of principal axis. The blocks will be fixed on the motor axis. The weight of eccentric excitation blocks is adjustable due to different materials, say make it heavier when materials are difficult for sieving. The material will not only be driven by horizontal centrifugal effect but also the vertical effect to form a complex movement.

Main technical parameters

Model	ZS-600	ZS-800	ZS-1000	ZS-1200	ZS-1500
Capacity (kg/h)	80-300	150-2000	200-2900	300-4500	500-5000
Number Of Mesh(Mesh)	12-200	12-200	12-200	12-200	12-200
Power (kw)	0.55	0.75	1.5	2.2	3
Vibration Frequency (time/min )	1500	1500	1500	1500	1500
Overall Dimension(LxWxH) (mm )	6806001100	11009501150	133011001280	138015001320	180018001320
Weight (kg)	280	320	420	600	780
