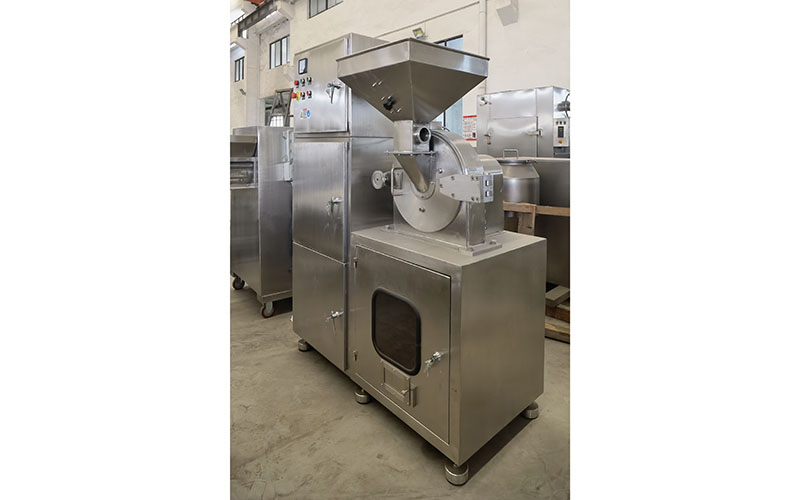

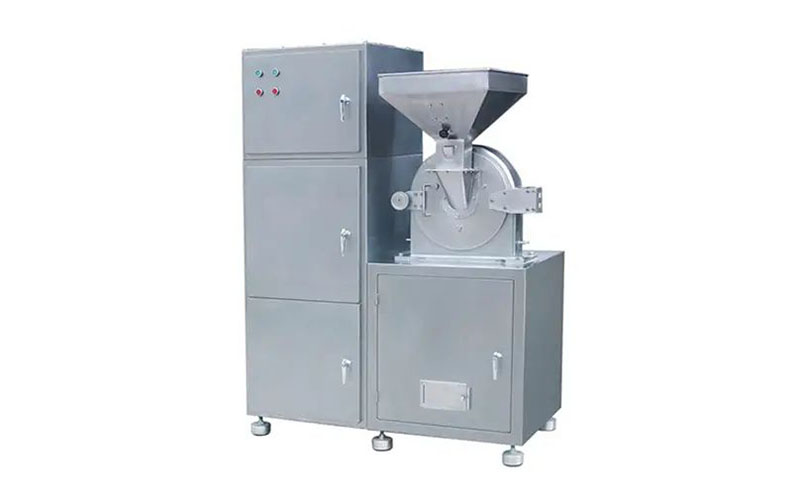

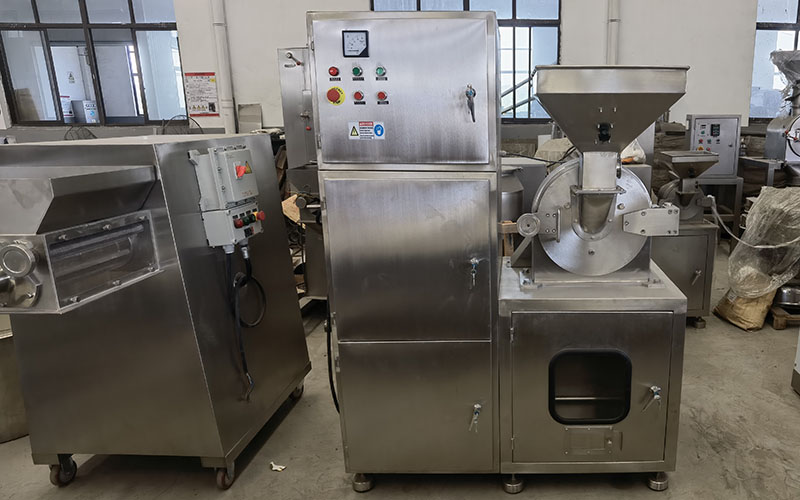

WF-B Series Dust Collecting Crushing Set
Features
1. Available in toothed disc, turbine, air-cooled, blade, and hammer types to suit various materials.

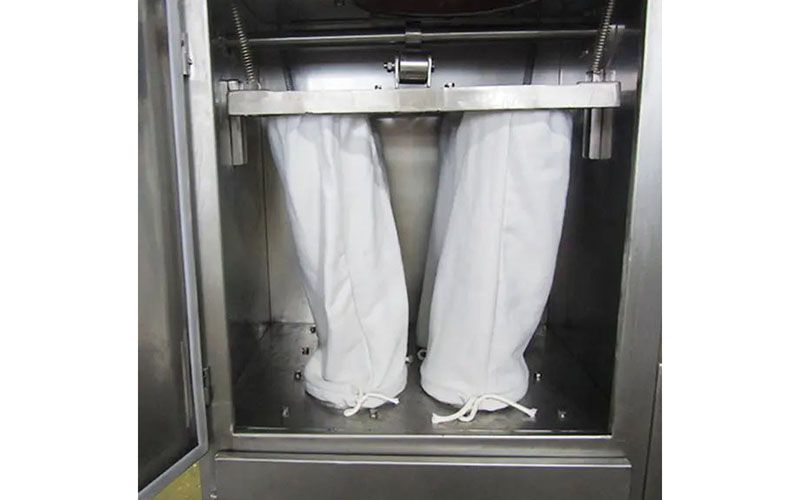

2. Equipped with a cyclone separator and dust collector, preventing dust from flying during production. The fine powder collected in the dust bag can be effectively recovered, reducing material loss.
3. The removable screen allows for different degrees of crushing thickness.

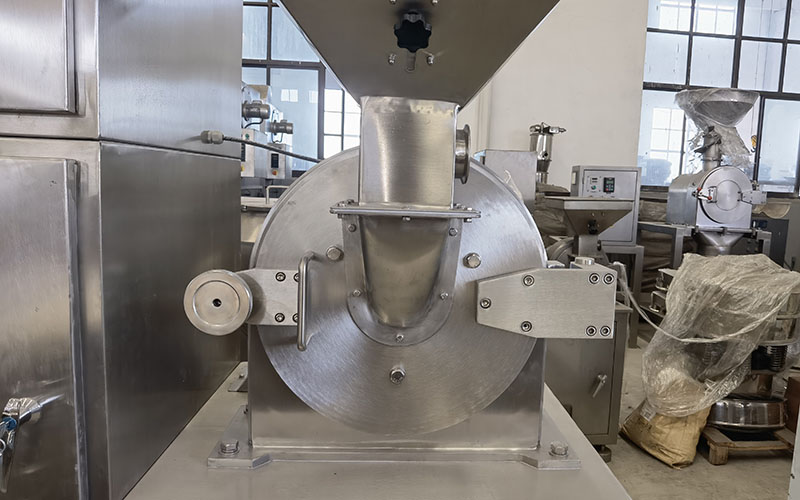

4. The pulverizer shell can be fitted with jacket cooling water, making it suitable for heat-sensitive materials.
Working Principle

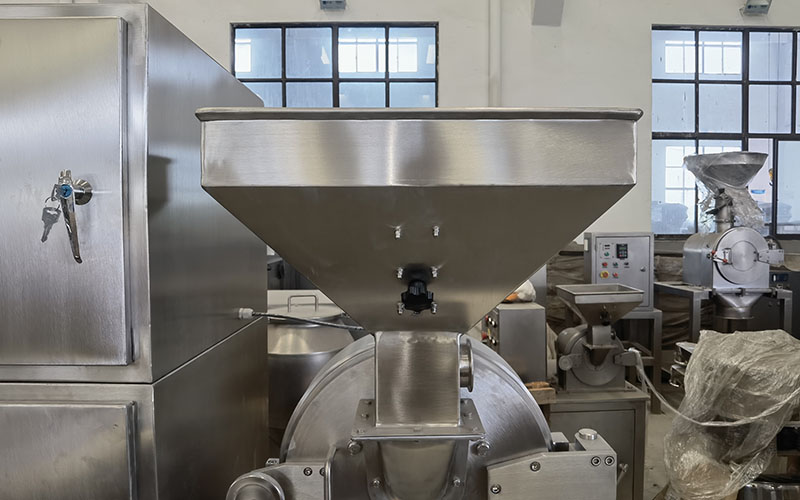

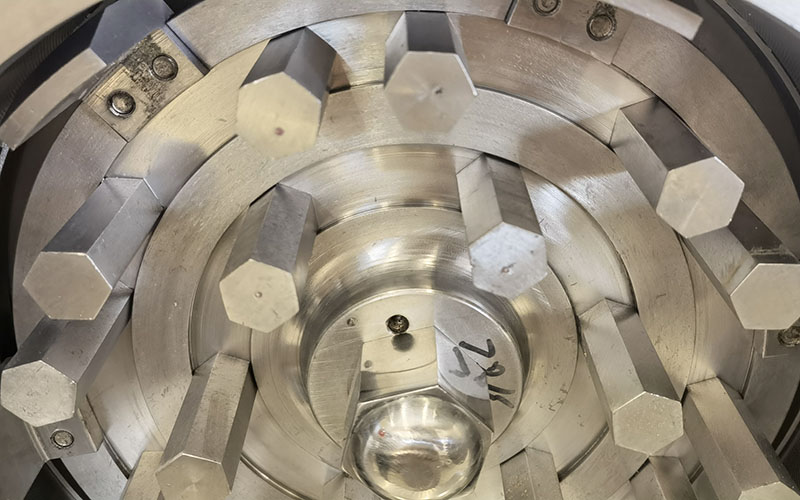

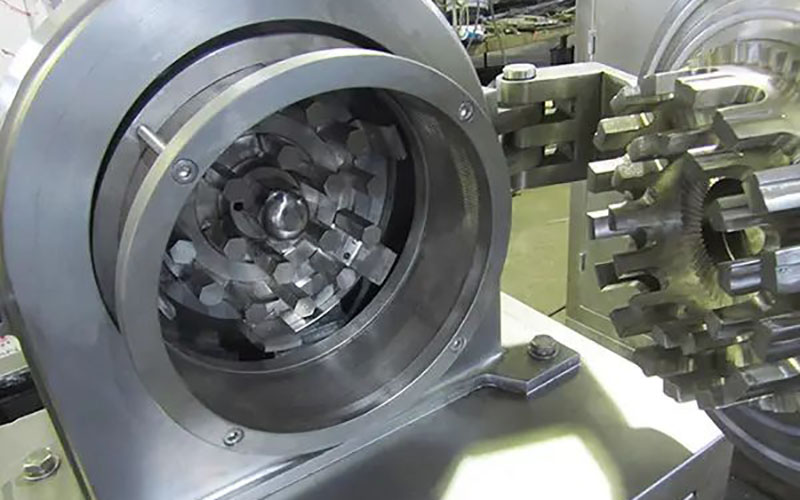

The Dust Absorption Crusher utilizes grinding action for material reduction, comprising a crushing chamber, throwing hammer, and grinding tile.Materials enter the crushing chamber from the feeding hopper, where they are thrown against the chamber walls by the centrifugal force of the high-speed rotating toothed plate. Fine particles pass through the sieve plate at the bottom, while coarse particles are repeatedly crushed. Movement generates airflow, which drives the crushed material through a screen into a filter bag, collecting the material and dust while expelling the air.
Model |
WF-20B |
WF-30B |
WF-40B |
WF-60B |
Production Capacity (kg/h) |
60-150 |
100-300 |
160-800 |
250-1200 |
Spindle Speed (r/min) |
4500 |
3800 |
3400 |
2800 |
Feed Size (mm) |
≤6 |
≤6 |
≤6 |
≤10 |
Crushing Fineness (Mesh) |
60-120 |
60-120 |
60-120 |
60-120 |
Crushing Motor (kw) |
4 |
5.5 |
1 |
22 |
Dust Collection Motor (kw) |
0.75 |
0.75 |
1.5 |
3 |
Dimensions (Length * Width * Height) (mm) |
1100*600*1650 |
1200*650*1650 |
1350*700*1700 |
1750*1100*1950 |
