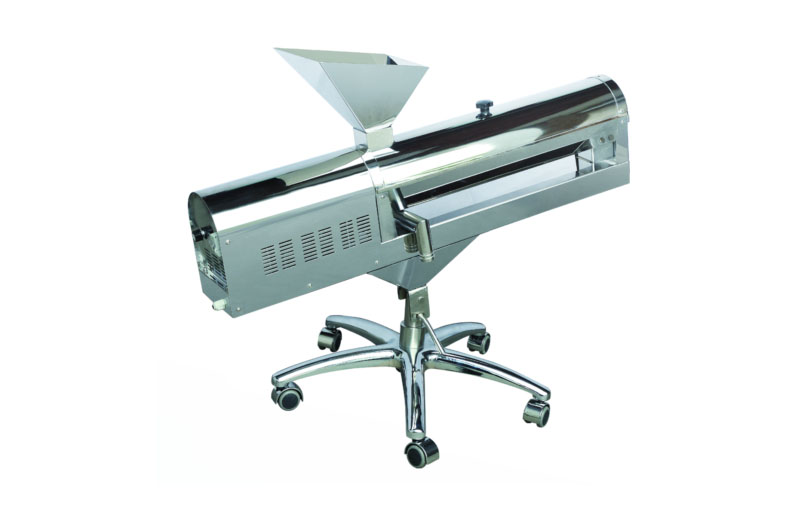

JFP-110A Series Vertical Capsule Polisher

Working principle

The working principle of this machine is to drive the capsule to move in a circular spiral along the wall of the polishing tube through the rotating movement of the brush, so that the capsule moves along the spiral spring, and the surface of the capsule shell is polished under the constant friction with the brush and the wall of the polishing tube. , The polished capsule enters the waste hopper from the discharge port. In the de-waste device, due to the effect of negative pressure, the light-weight unqualified capsules rise under the action of the airflow and enter the vacuum cleaner through the suction tube. The heavy-weight qualified capsules continue to fall and are discharged through the movable discharge hopper to effectively achieve polishing. To eliminate the purpose. The powder and small fragments that are brushed off during the polishing process enter the sealed cylinder through the small holes on the wall of the polishing cylinder, and are sucked into the vacuum cleaner for recovery.
