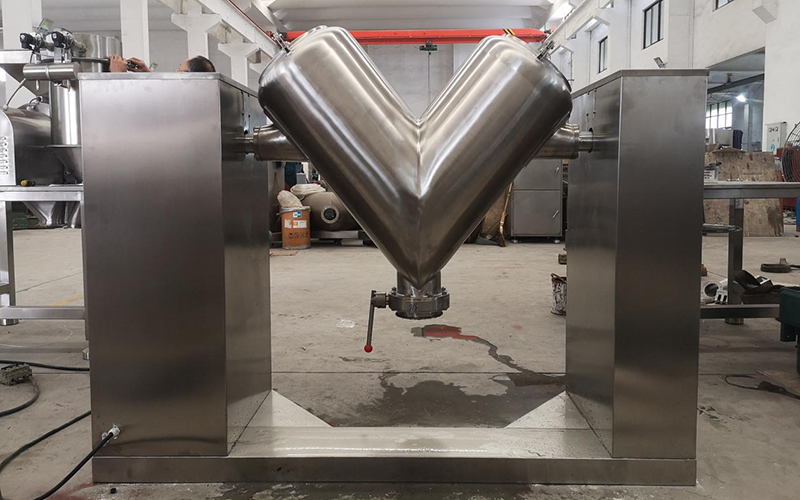

HJ-V Series V Blender Dry Powder Mixer

V blender dry powder mixer are commonly used in pharmaceutical, nutritional, chemical, food and related industries to mix dried powder and granules.

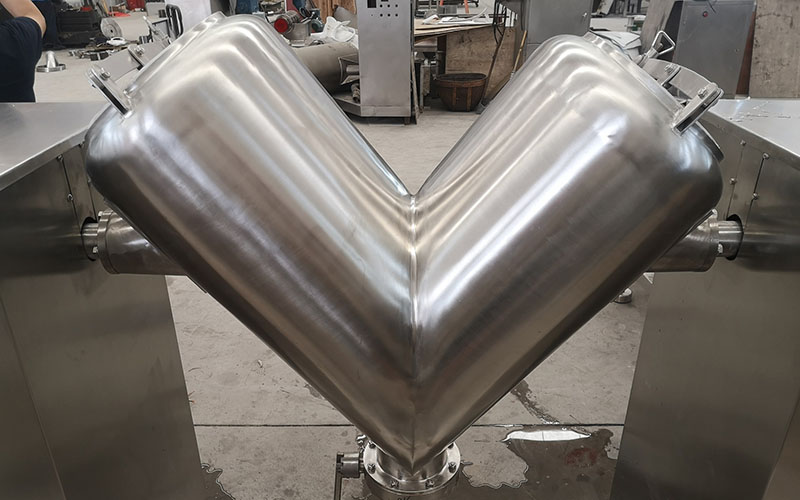

It consists of two V shells of different or same altitudes, and through mechanical transmission, the materials in these shells are made to move back and forth, crossed over and rotate 360 degree to achieve uniform mixing.

Aligned’s V blender are rugged in designed and construction, 304 ss (optional 316L) mirror polished of inner and outer shell to meet the GMP standard. We used heavy duty industrial for all 3-phase V blender and intensifier bar.

Product introduction
Features
Precautions for using the machine
Technical parameters

Product Introduction

Features

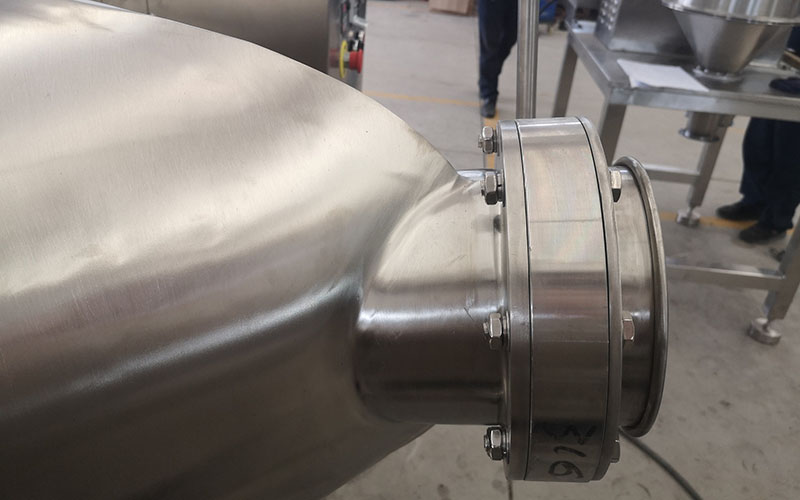

V shape mixer adopts labor feeding and enclosed flapper valve for discharging. lt will not produce powder dust, and it also will not produce mechanical compression and strong friction during mixing.so the material particles can remain intact. The mixing barrel is made of stainless steel, which won 't pollute the material.Besides, this machine has timing device, which can control the mixing time of materials.

Precautions for using the machine

1. Connect the power first, setting the required mixing time, then turn on the switch,the machine begin running.

2. After the mixing, if you found that the position of discharging port is not the best position, you should turn off the power first, and adjust the position of discharging port.

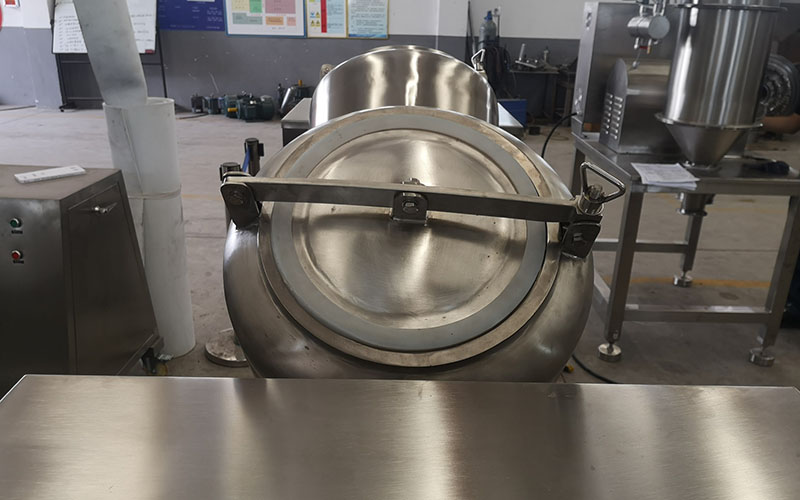

3. Before you use the machine, you should check the appliance, if it is normal; and check the covers of mixing barrels, if the covers are tightly closed.

4. User should clean the machine after the finish of work, especially the barrels, prevent the residual materials.

5. Note that the reducer should be added enough lubricating oil,and the transmission should be added grease lubricant.

6. Users should maintain the machine once each half of year, change the lubricating oil of reducer, check if the appliance is aging, the appliance should be replaced if it is aging.

7. After you have been using the machine for one year or more, you should make a big maintenance, check the between each parts, and appropriately adjust them, so that the machine can keep in good condition.

Main technical parameters

Model	HJ-V-50	HJ-V-100	HJ-V-200	HJ-V-300
Volume	50L	100L	200L	300L
Max.Filling Capacity	20L	40L	80L	120L
Best Filling Capacity	14L	28L	56L	84L
Power	0.75KW	1.1KW	1.5KW	1.5KW
Rotational Speed	20r/min	15r/min	15r/min	15r/min
Dia.Of barre	φ300mm	φ350mm	φ450mm	φ500mm
Dia.Of Inlet	φ160mm	φ250mm	φ300mm	φ300mm
Dia.Of Outlet	φ80mm	φ80mm	φ100mm	φ100mm
Dimensions(mm)	1350x450x1160	1900x800x1190	2010x850x1440	2220x900x1470
Weight(kg)	183kg	236kg	300kg	400kg
