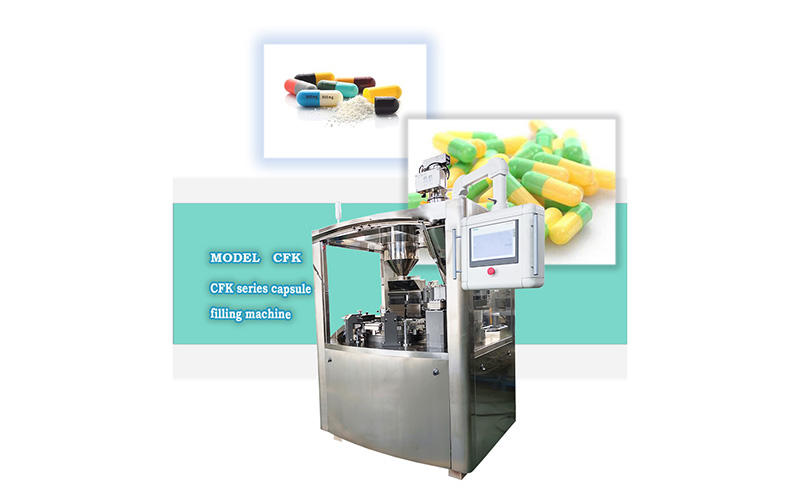

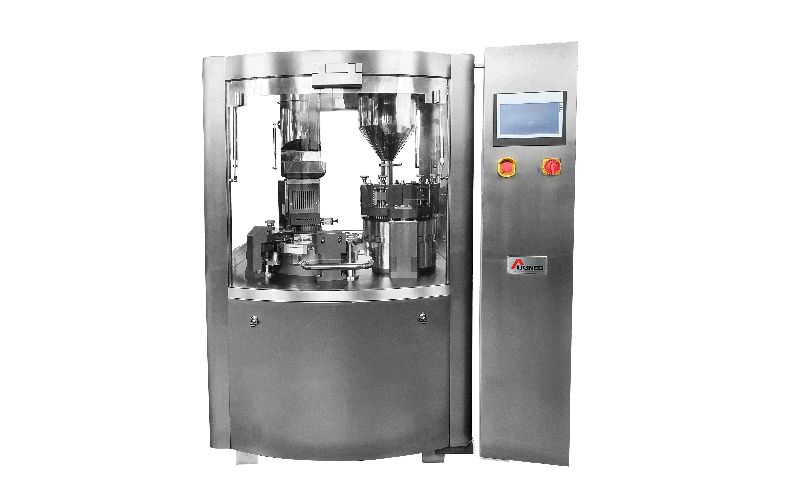

CFK Series Smart Automatic Capsule Filling Machine
- ● Automatic capsule filling machine can be equipped with auxiliary equipment such as an automatic capsule feeder, vacuum feeder, metal detector, polishing machine, and lifter according to different usage scenarios. This enhances productivity and reduces labor intensity, making it an ideal capsule filling machine for the modern pharmaceutical industry.
- ● Automatic capsule filling machine features a patented copper pad design, effectively reducing powder leakage, saving raw materials, and improving production efficiency.
- ● Aligned machinery's machines are the ideal choice for the capsule manufacturing industry, significantly boosting production efficiency and ensuring product quality.
Features
Wide Application Range: Suitable for filling powders and granules into capsules of sizes 00# to 5#.

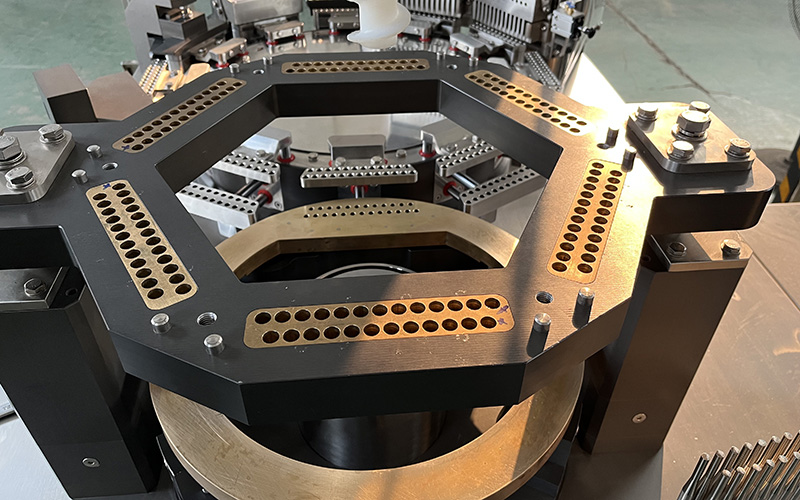

High Stability: The internal cam at the bottom of the main machine is fixed to the thickened base with a steel frame, enhancing the machine's stability. Maintenance and replacement take only 5 minutes.

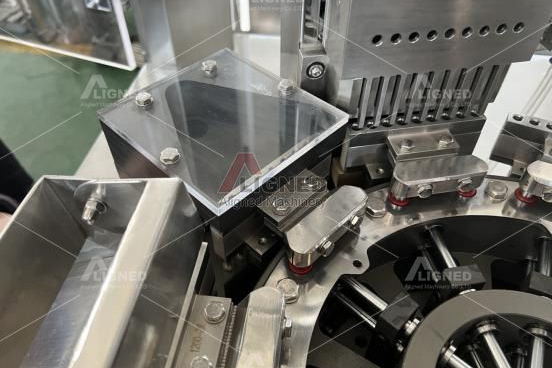

Easy to Clean: The mold cleaning and air blowing device effectively removes dust accumulated in the molds, reducing capsule rejection rates. The locking device adds a cleaning function, ensuring the produced capsules remain clean.
Material Saving: The newly designed copper pad significantly reduces powder leakage, preventing powder from contaminating the worktable and reducing raw material waste.

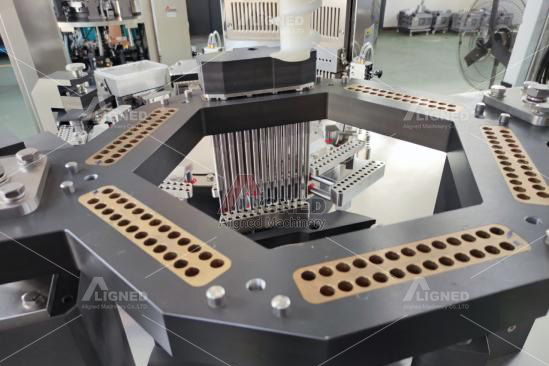

Modular Design: The filling station adopts a modular design, allowing for quick replacement of the filling station within 10 minutes. The switch from powder filling to granule filling can be completed within 15 minutes.

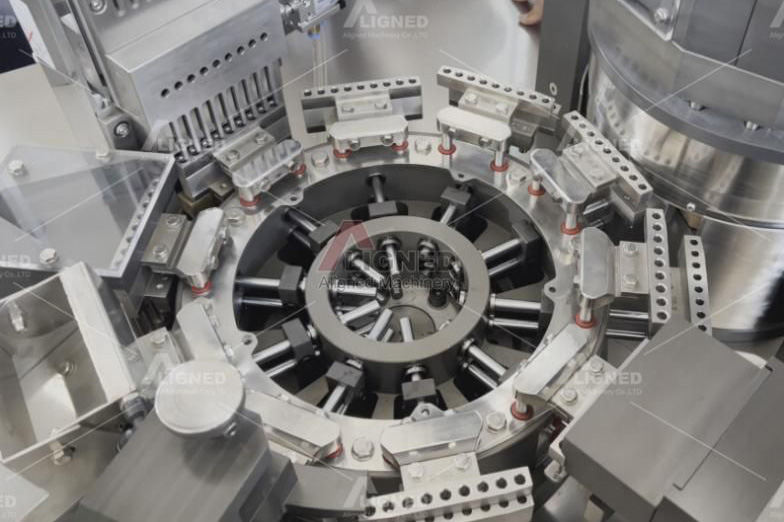

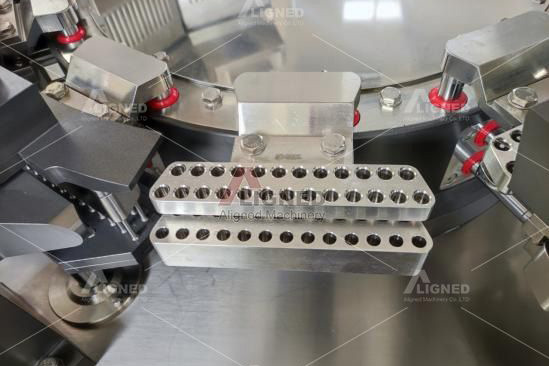

Efficient Production: The automatic capsule filling machine uses electrical control to complete the processes of capsule positioning, separation, filling, and locking, greatly increasing productivity and reducing labor intensity.
Flexible Configuration: It can be equipped with auxiliary equipment such as an automatic capsule feeder, vacuum feeder, metal detector, polishing machine, and lifter according to different usage scenarios to meet various production needs.
Model |
CFK-1500 |
CFK-2500 |
CFK-3500 |
Output( Capsules/min) |
1500 |
2500 |
3500 |
No.of segment bores |
11 |
18 |
25 |
Suitable for capsule |
00#-5# |
00#-5# |
00#-5# |
Total power |
8.5Kw |
8.5Kw |
11.5Kw |
overall weight |
1400Kgs |
1650Kgs |
2635Kgs |
overall dimension |
1230mm×1175(+382)mm×1955mm |
1230mm×1175(+382)mm×1955mm |
1435(+550)mmx1248(+280)mmx1960mm |
Dust |
20Kpa 210m3/h |
20Kpa 210m3/h |
20Kpa 210m3/h |
Noise |
<80DB(A) |
<75DB(A) |
<75DB (A) |
vacuum |
72m3/h, -0.03—0.05Mpa |
72m3/h,-0.03—0.05Mpa |
120m3/n, -0.03—0.05Mpa |
Filling error |
±2.5%-±3.5% |
±2.5%-±3.5% |
±2.5% |
