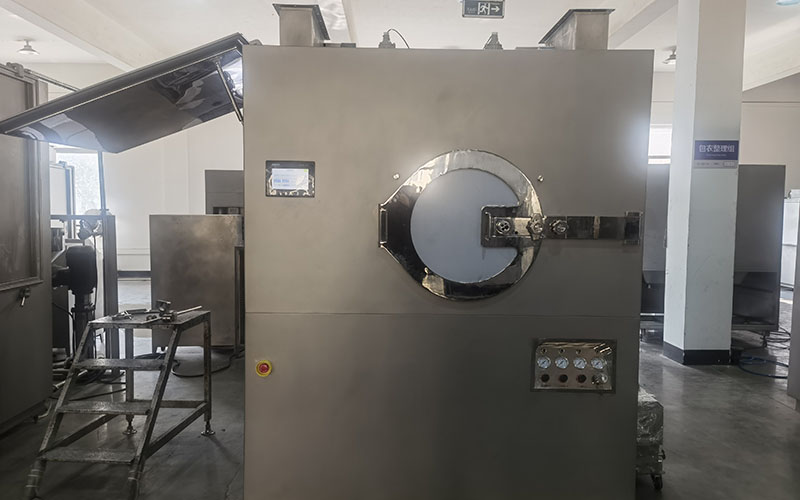

BG-E Series Tablet Coating Machine
Features

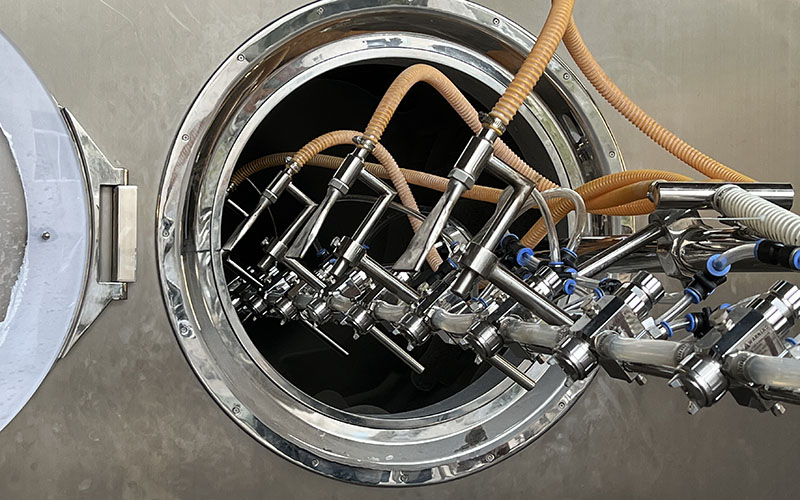

1. Spray Nozzle Adjustment: The distance and angle between the spray nozzle and the coating pan can be adjusted, along with the air pressure and flow rate, to meet different needs.
2. High-end Spray Nozzle: The spray nozzle features anti-drip and anti-clogging design, fine atomization, adjustable flow rate and angle, and is easy to disassemble and maintain.
3. Spray Nozzle Bracket: With a pulley and rotary arm structure, the bracket can rotate 180° for easy cleaning and maintenance.
4. Uniform Powder Distribution: Screw metering and compressed air blowing devices ensure more uniform powder distribution.

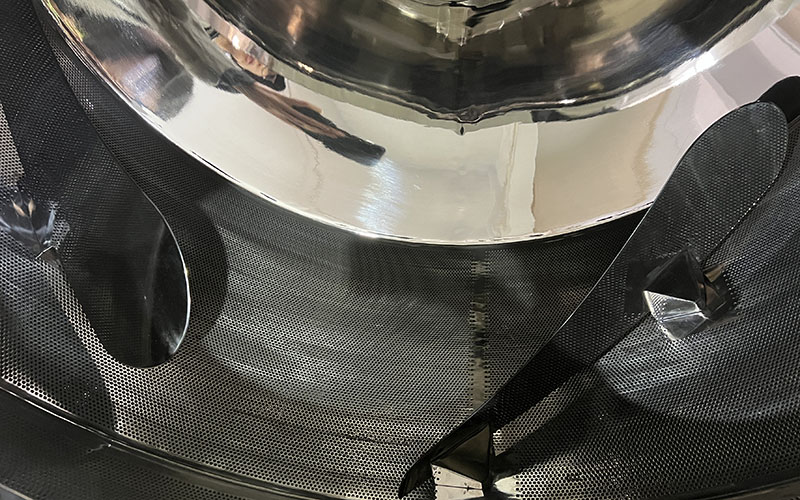

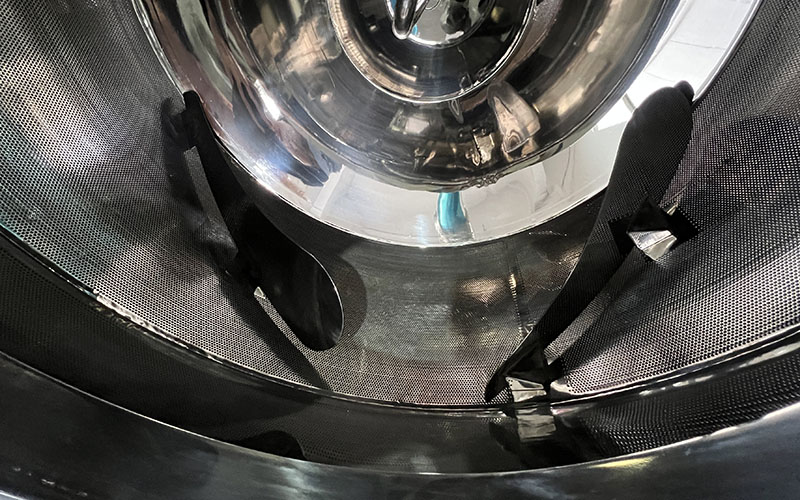

5. Efficient Drying: The 2. 5mm mesh plate design improves hot air passage efficiency, accelerating drying.
6. Negative Pressure Protection: The internal negative pressure prevents dust leakage during operation, ensuring operator health.

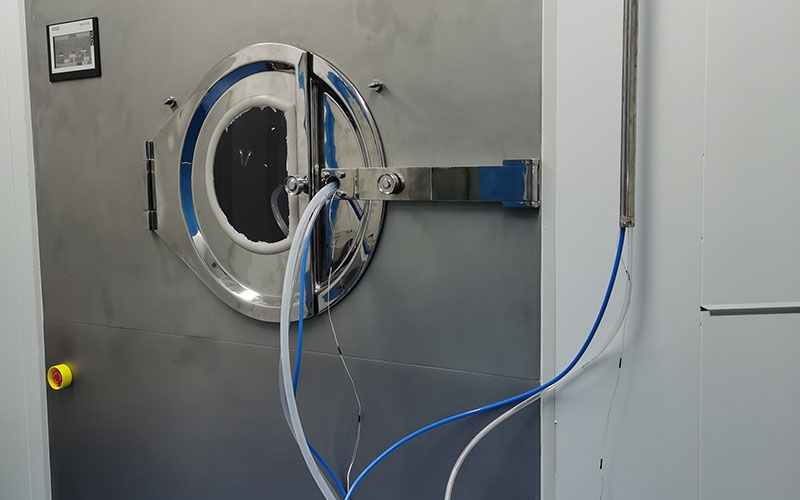

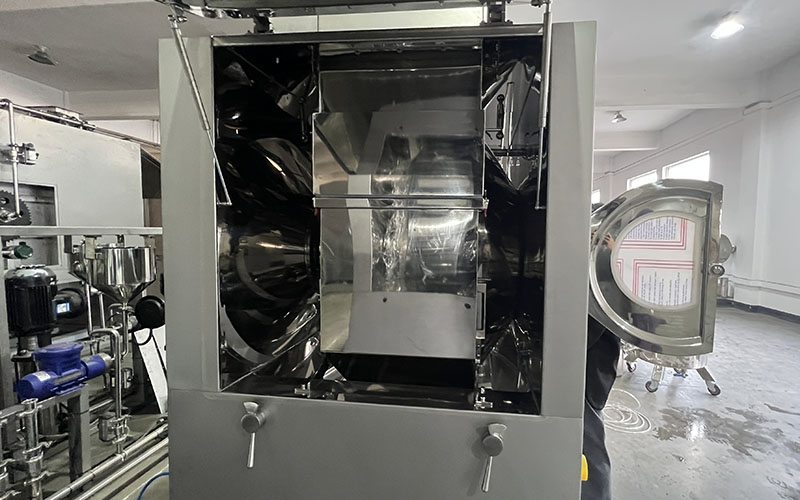

7. Easy Cleaning: Doors on both sides can be freely opened for quick cleaning.
8. Multiple Cleaning Systems: Optional one-way and three-way cleaning systems are available.
9. Various Structural Choices: Choose between porous or non-porous structures, with porous structures offering higher efficiency and faster drying speeds.
Model |
BG-10E |
BG-40E |
BG-80E |
BG-150E |
BG-260E |
BG-400E |
BG-600E |
BG-1000E |
|
Load Capacity L |
10 |
40 |
80 |
150 |
260 |
400 |
600 |
1000 |
|
Rotation Speed Of Coating Pan（RPM） |
1-25 |
1-21 |
1-19 |
1-16 |
1-16 |
1-13 |
1-12 |
0-12 |
|
Power Of Main Machine(KW) |
0.55 |
1.1 |
1.5 |
2.2 |
2.2 |
3 |
5.5 |
7.5 |
|
Diameter Of Coating Pan(mm) |
500 |
750 |
930 |
1200 |
1360 |
1580 |
1580 |
1580 |
|
Motor Of Air Exhaust Cabinet(Kw) |
0.75 |
2.2 |
3 |
5.5 |
5.5 |
7.5 |
11 |
22 |
|
Air Exhaust Flow(m³/h) |
1285 |
3517 |
5268 |
7419 |
7419 |
10000 |
15450 |
20000 |
|
Motor Power Of Hot Air Cabinet(Kw) |
0.37 |
0.75 |
1.1 |
1.5 |
2.2 |
3 |
5.5 |
7.5 |
|
Hot Air Flow(m³/h) |
816 |
1285 |
1685 |
2356 |
3517 |
5200 |
7419 |
10000 |
|
Weight Of Main Machine(kg) |
200 |
500 |
684 |
1020 |
1300 |
1562 |
2800 |
4000 |
|
Clean air |
Pressure(mpa) |
≥0.4Mpa |
≥0.4Mpa |
≥0.4Mpa |
≥0.4Mpa |
≥0.4Mpa |
≥0.4Mpa |
≥0.4Mpa |
≥0.4Mpa |
Air Consumption(m³/min) |
0.3 |
0.4 |
0.4 |
1 |
1.2 |
1.5 |
2 |
3.5 |
|
Machine Dimension |
Main Machine(mm) |
900*620*1800 |
1000*800*1900 |
1210*1000*1900 |
1570*1260*2250 |
1730*1440*2470 |
2000*1670*2660 |
2000*2277*2660 |
2500*3100*2800 |
Hot Air Cabinet(mm) |
800*650*1600 |
900*800*2050 |
900*800*2050 |
1000*900*2300 |
1000*900*2300 |
100*900*2300 |
1600*1100*2350 |
1700*1200*2600（3000 steam） |
|
Air Exhaust Cabinet(mm) |
800*650*1600 |
820*720*1750 |
900*820*2130 |
950*950*2245 |
1050*1050*2330 |
1050*1050**2330 |
1050*1000*2470 |
3000*1115*2400 |
|
Steam Heating Power |
|
9 |
10 |
14 |
14 |
18 |
29 |
40 |
|
Electric Heating Power |
12 |
24 |
30 |
42 |
48 |
61 |
79 |
120 |
|
