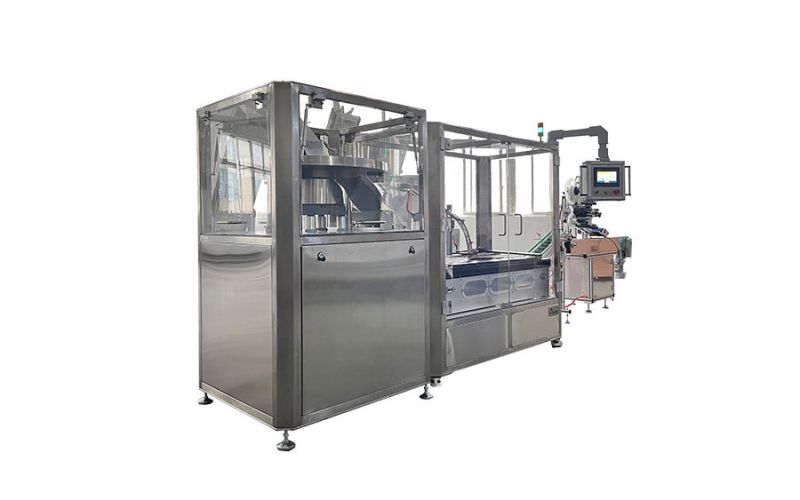

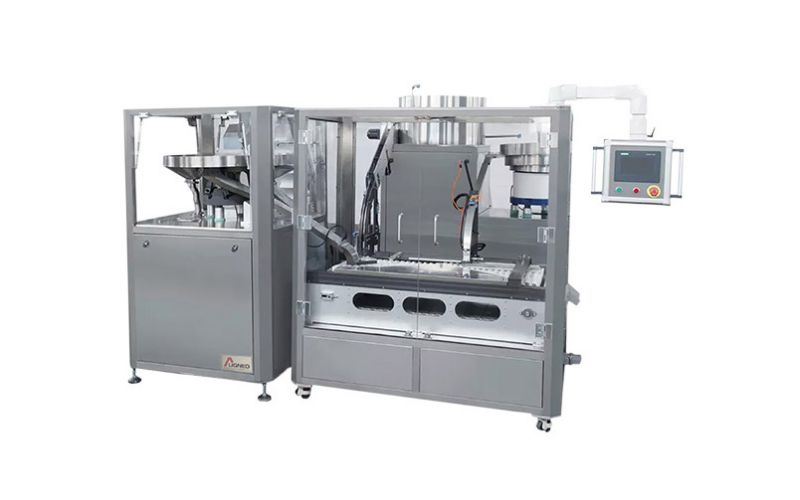

Automatic Effervescent Tablet Tube Filling Machine, TF-120

Effervescent Tablet Tube Filling Machine is a highly efficient, stable, and fully automated device specifically designed for effervescent tablet packaging, suitable for the pharmaceutical, health supplement, and food industries. This machine can fill a variety of products including vitamin supplements, detergent tablets, and disinfectant tablets, ensuring precise dosage and stable quality.

The operation process is automatically completed by a PLC control system, ensuring each step is carried out efficiently, accurately, and stably. The machine is equipped with a dual photoelectric detection system to ensure the reliability and consistency of the filling process, achieving high-quality effervescent tablet packaging.

Aligned Machinery's design not only enhances production efficiency but also guarantees the quality of effervescent tablet packaging, meeting GMP standards.

Product introduction
Features
Technical parameters
Work Principle

Product Introduction

Features

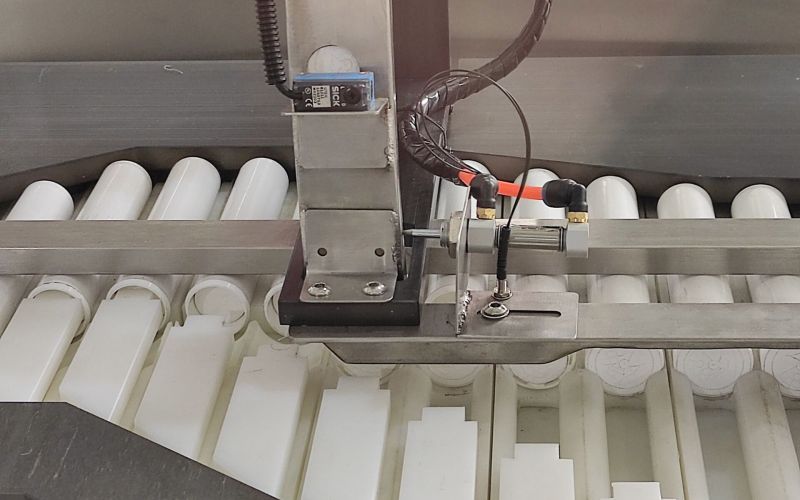

1. High-Efficiency Dual Detection: Uses dual photoelectric detection technology to ensure no missing or damaged tubes and tablets, improving the pass rate.

2. Innovative Design: Compact structure, small footprint, enhancing space utilization.

3. High-Speed Feeding: Adopts a self-developed vibrating turntable feeding method, doubling the speed, preventing tablet blockage in the track, and reducing loss.

4. Quick Mold Change: Mold replacement completed within 2 minutes, adaptable to different tube sizes, improving production efficiency.

5. Intelligent Control: Dual-key start system, automatic operation after material positioning, simplifying the operation process.

6. Humidity Detection: Optional humidity detection and alarm device to ensure the production environment.

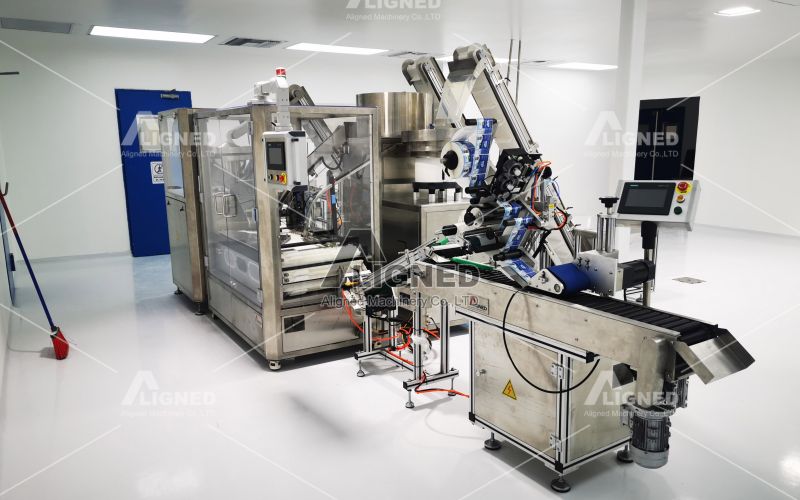

7. Linked Operation: Can be connected with a labeling machine, using the same control system, reducing operation frequency and improving efficiency.

8. High Capacity: Stable output reaching 120 tubes per minute, 70% higher than traditional equipment.

9. Modular Design: The equipment can be disassembled for packaging and transportation, assembled with bolts, and is easy to operate.

Main technical parameters

Max. Output	120tubes/min
Max. Tablet Feeding Speed	98000pc/h
Tablet Diameter	16-33mm
Tablet Diameter (minimum-maximum), in Millimeters	16-33
Tablet Thickness	3-12mm
Tablet Hardness	≥40N
Bottling Quantity	5-20pc
Tube Length	60-200mm
Tube Diameter	18-35mm
Power Supply	380V 50HZ 3P
Power	4.5KW
Overall Size	2500mm1600mm1700mm
Weight	About 480KG

Work Principle

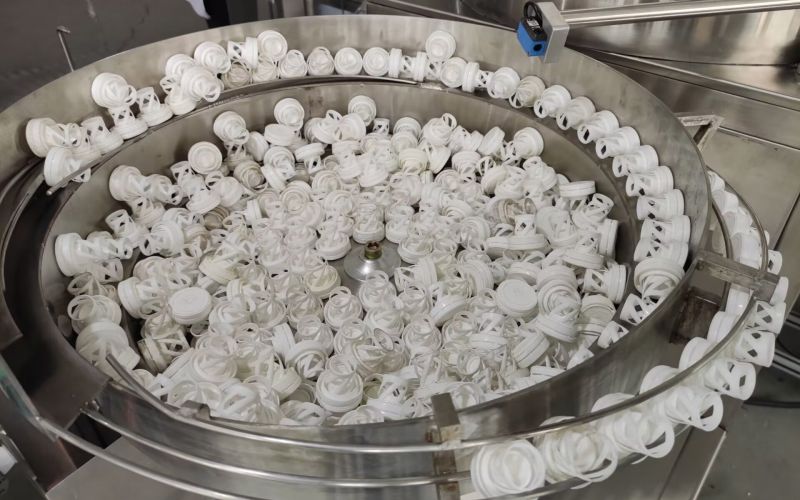

1. Cap Feeding: The capping device automatically arranges and sends the caps to the capping station.

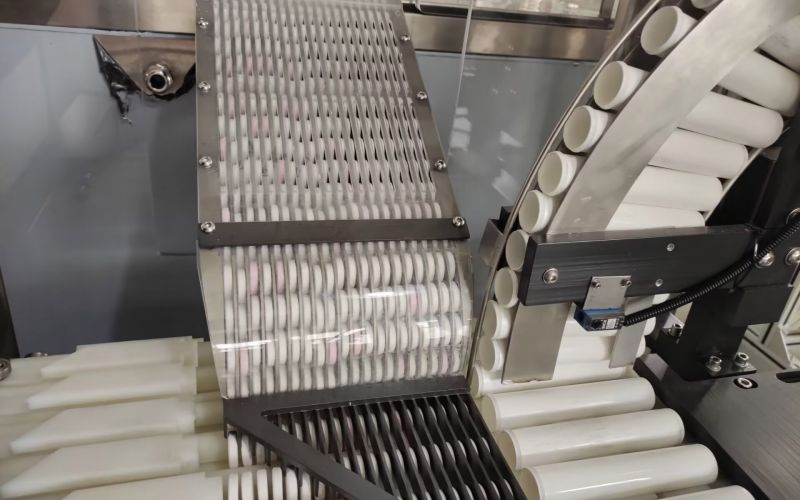

2. Tablet Feeding: The vibrating plate automatically arranges and conveys the tablets to the bottling mechanism.

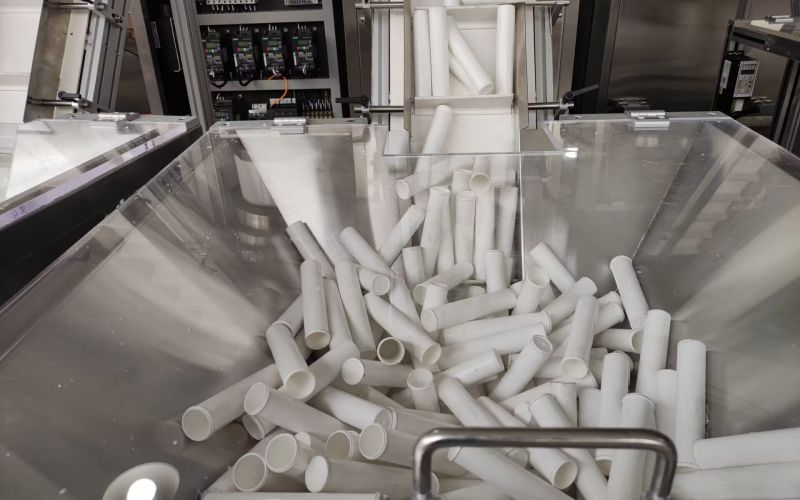

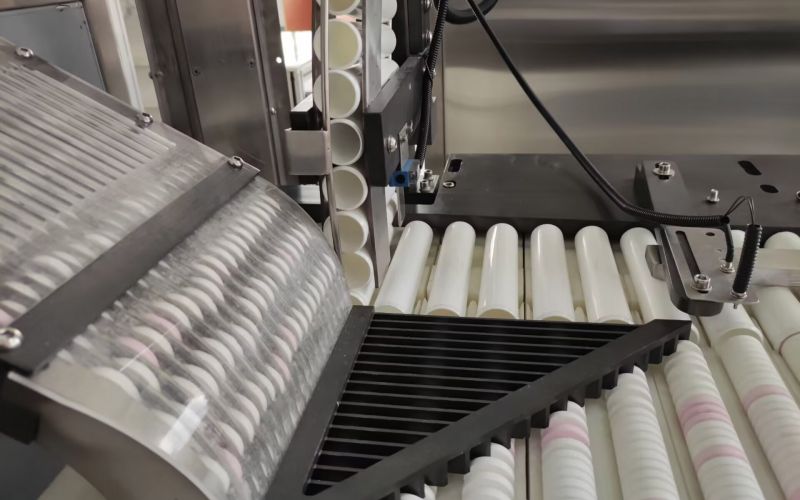

3. Bottle Feeding: The automatic bottle arranging device arranges the bottles and sends them to the bottling position.

4. Bottling: The tablet counting mechanism accurately counts and automatically fills the tablets into the bottles, ensuring precise dosage.

5. Capping: After detecting the presence of bottles and tablets, the machine automatically presses the cap into the bottle to complete the sealing.
